GRAPHITE POLYBLOCK HEAT EXCHANGERS/CONDENSOR.

The Graphite Exchangers Are Suitable For Applications The Require Handling Of Corrosive Liquids And Gases.

Typical Application Include:Heating Corrosive Fluids with Steam Gases or Hot Fluids.Cooling Corrosive Fluids With Other Cold Water, Brine or Other Fluids Condensing Vapours or Gases.

Main Features : Great Versatility,Proprietary impregnations,Multiple header arrangements,Interchangeable headers

High Reliability : Rugged Construction, Highly Resistant To Thermal Shock,Take Overloads Since All Graphite Is Kept Under Compression No Cemented Parts,
Only Fine Grain Graphite Used, Unequaled Heat Transfer Performance,Optimum Velocity Can Be Obtained All Along The Heat Exchange Path Through Effective Baffle Arrangements. Compact Construction,Large Surface Area In Small Volume.Split Or Graduated Multipass Arrangements Can Also Be Supplied.

(Graphite Polyblock Heat Exchangers)

Application:

I.	Condensation Of Corrosive And Inorganic Vapours.
II.	Partial Condensation.
III.	Cooling Of Corrosive Liquids.
IV.	Dilution Cooling Of Sulphuric Acid.
V.	Heat Exchange Between Two Corrosive Liquids.
VI.	Devices For Combined Mass And Heat Transfer Processes.
VII.	Heat Of Corrosive Liquids.
VIII.	Absorption Of Hcl In Water.
IX.	Heating Or Cooling Of Corrosive Gases.

Main Features :

I.	Several Proprietary Impregnations.
II.	Multiple Header Arrangements.
III.	Interchangeable Headers.
IV.	Corrosive Fluids Can Be Handled On Both Sides Of The Heat Exchanger.
V.	Rugged Construction.
VI.	Highly Resistant To Thermal Shock.
VII.	Optimum Velocity Can Be Obtained All Along The Heat.
VIII.	Exchange Path Through Versatile Partition Arrangements.

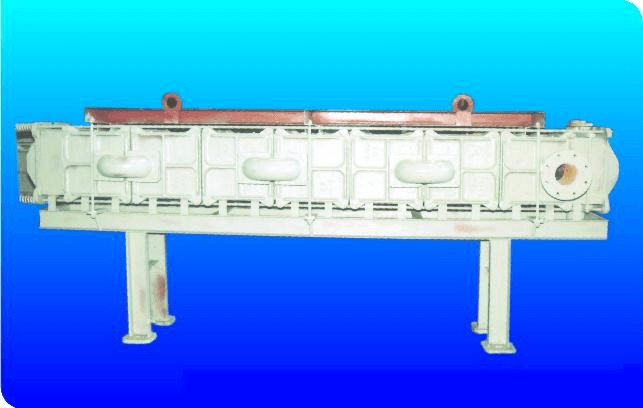

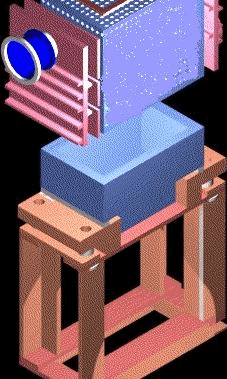

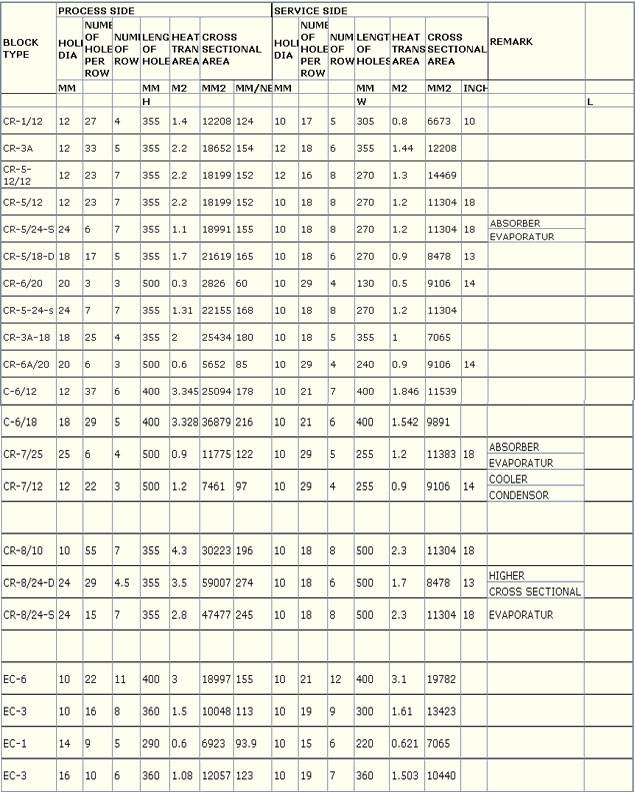

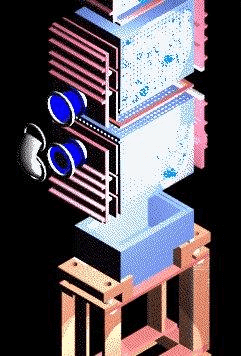

Construction Principle of Design :

The Graphite Impregnated Block is Permanently Compressed Between Cast Iron Clamping Plates, With Tie Bolts Passing Through The Lugs At The Corners.There Are Series of Parallel Holes Between Opposing Faces For The Passage Of Process And Service Fluids.The Headers Are Made of Cast Iron.Other Coatings Can Be Done Not The Header According To The Corrosive Nature of The Fluids. A Variety of Multi-Pass Arrangements Can Be Accommodated By Incorporating Partitions Inside of The Headers.Split or Graduated Multipass Arrangements Can Also Be Supplied. By Using Multi-Pass Headers,Velocity of The Process and Service Fluids Can Be Adjusted To The Most Economic Figure.
This Gives A Close Approximation To Close Counter Current Flow,Which Is Particularly Useful For Heating or Cooling Fluids or Heat Recovery Duties.With The Cross Flow Principle And Using Graphite Headers On Both Sides of The Block,The Heat Exchanger Can Handle Corrosive Fluid.Gaskets Are Only Used Between The Graphite Block And The Removable Headers;Any Leakage Is To Atmosphere Where It is Immediately Detectable.Contamination of The Process Fluid by The Service fluid is Impossible.
